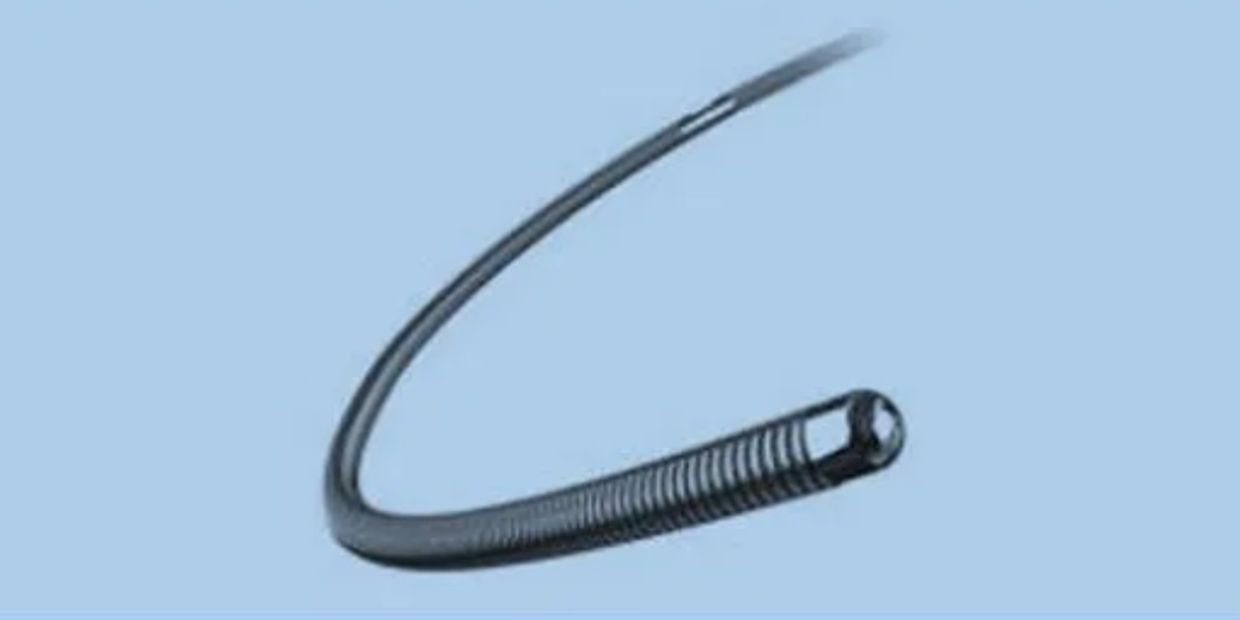

0.014" Workhorse guidewire
0.014" Workhorse Guidewire
- Workhorse Guidewire- 300cm Length
- Fast Recovery, resilient Nitinol Distal Accepts 2X the Load Without Deformation
- 0.8g & 1.5g Tip Weight Options; Moderate Support
- Superior Hydrophilic Coating Durability
- Stainless Steel Body for Predictable Tracking and Pushability
0.018"-0.035" Workhorse Hydrophilic coated nitinol guidewire
0.035" Workhorse Guidewire
- Excellent Kink-resistant, super-elastic Nitinol core wire
- Outstanding Pushability
- Tip Designed for Safety
- Super Smooth Insertion and Torque Transmission
- High Visibility under Fluoroscopy
- Light Tip Weight for Straight and Angles models
1. Length- 260 / 160 / 150cm
2. Diameters- 0.035" / 0.032" / 0.018"
3. Shaft Configurations- Straight and Angled / Shapeable
4. Taper Core Tip
pta semi-compliant balloon dilatation catheter
PTA Catheter
- Diameter- 2.0 to 7.0mm
- Balloon Length- 20 to 300mm
- Max. guidewire- 0.018"
- Tip Crossing Profile- 0.0225"
- Sheath Length- 150cm (OTW)
- Sheath Compatibility- 4F- 6F
- Balloon Type- Semi-Compliance Nylon
- Nominal Pressure- 6 ATM
- Rated Burst Pressure- 14 or 16 ATM
- Hydrophilic Coating- distal 400mm
- Smooth transition tip design, tapered tip 0.021”
High-Pressure pta balloon dilatation catheter
High Pressure Catheter
- Balloon Construction- 2 Layer
- Balloon Diameters- 3 to 12mm
- 0.035" Guidewire Compatible (OTW)
- Tip Crossing Profile- 0.040"
- Nominal Diameter Pressure- 8, 10 ATM
- Rated Burst Pressure- 18-24 ATM
- Catheter Lengths- 40cm, 75cm, 135cm
- Sheath Compatibility- 6-8F
inflation device
Inflation Device
- Dial Display
- 30 ATM maximum
- O-Type Handle
